GeckoTeq Cleat Z Bar Hanging Rail - per set of 2

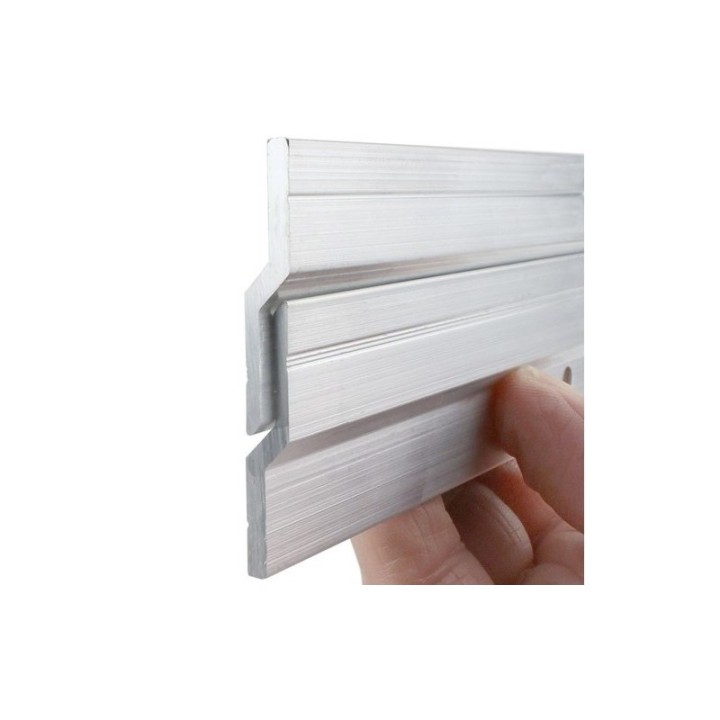

HEAVY-DUTY Z-BAR Suspension Rails

The HEAVY-DUTY Z-BAR hanger is a perfect solution for hanging very heavy objects (such as mirrors, large frames, paintings and cabinets). This system, which is based on a “French Cleat” style, sits flush against the wall. Hanging heavy objects becomes even easier with these Z-Bar hangers. For hanging on sloping walls (in the attic) or ceilings, use a set at both the top and bottom of the object. If using only a Z Bar on the top, use the PVC bumpers on the bottom to prevent the bottom "tilting" towards the wall.

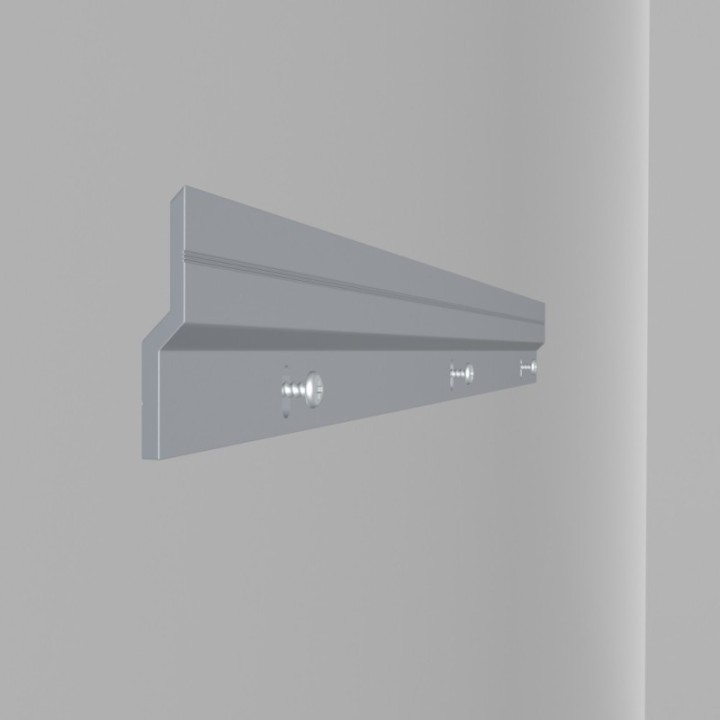

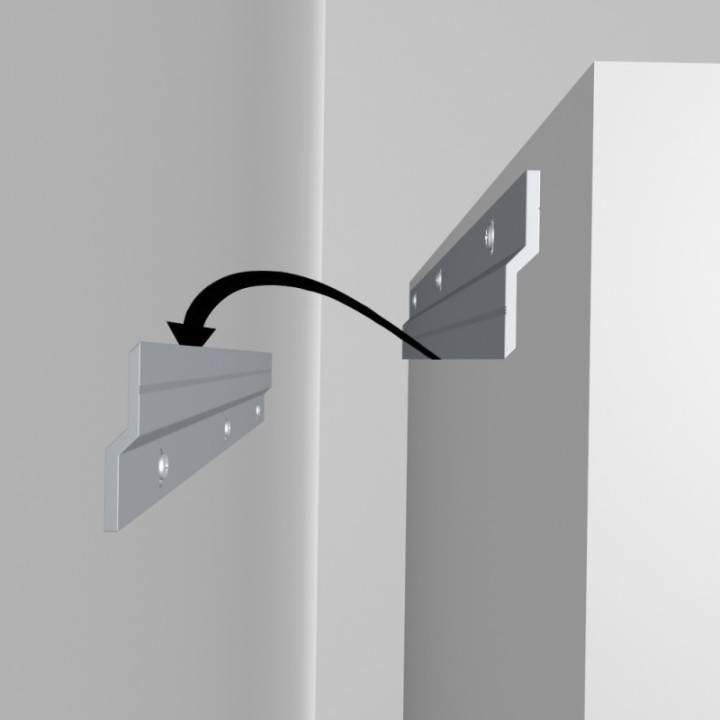

For quick, level and safe hanging of cabinets, heavy frames and mirrors. Easy installation; screw 1 part to the wall and the second part to the object. This is also a good solution for hanging heavy items that you need to change often.

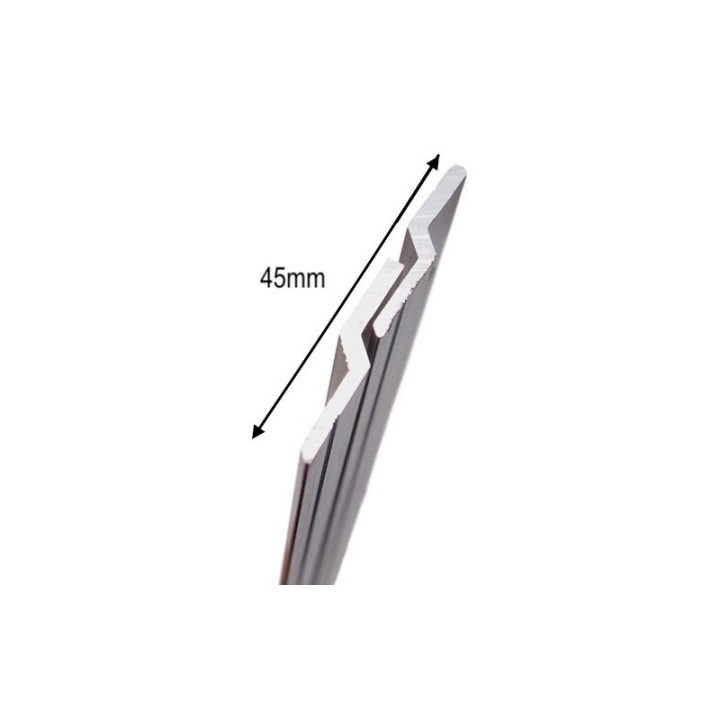

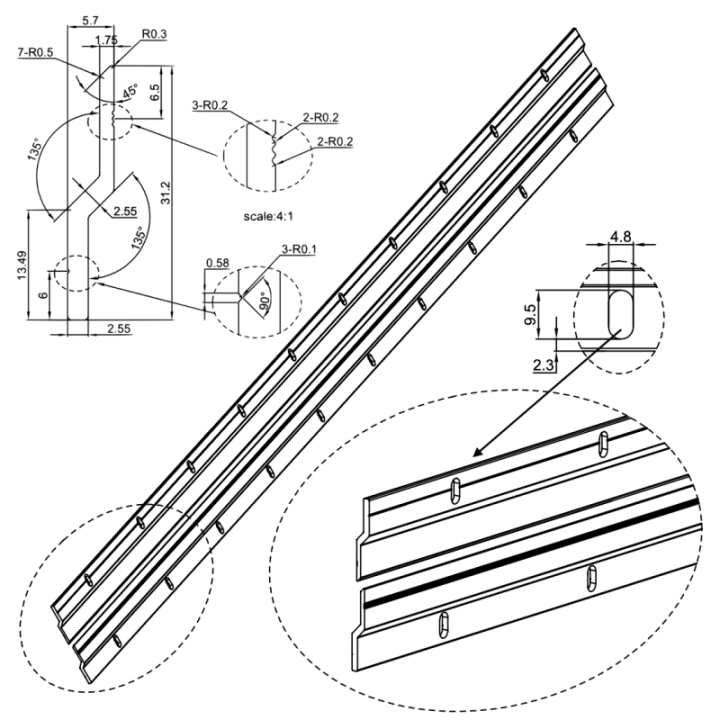

Designed with anti-corrosion technology, this indoor hanging system is available in 7 length sizes, which you can choose according to your hanging needs. Made of high-quality aluminum in various lengths and 30 mm wide with oval screw holes.

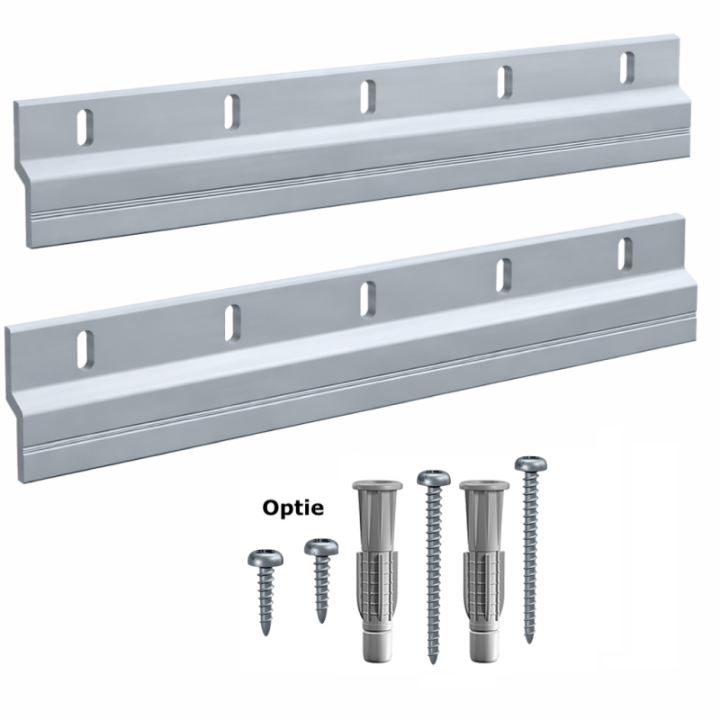

Delivery per pair: 2 aluminum Z-profiles, optionally with screws, plugs and PVC Bumpers.

And if they are too long, the aluminum cleats can be cut with any carbide saw or hacksaw if necessary. Or use two pairs to hang very large objects.

Please note: the available wall plugs are suitable for a solid brick or block wall construction - however, use special plugs for hollow walls or partitions (not available with us). The load-bearing capacity is of course very dependent on where (which material) each Z Bar rail is screwed into, but this rail (in stone or concrete) has a load capacity of approx. 30 kg per linear meter or 3 kg per screw.

For hanging on sloping walls or ceilings, use a set at the top and bottom of the object.

Screw holes per rail length:
  5cm = 2
15cm = 3
30cm = 3
45cm = 5
60cm = 6
100cm = 10
150cm = 15
200cm = 20

Distance from the wall to the object: 7mm
